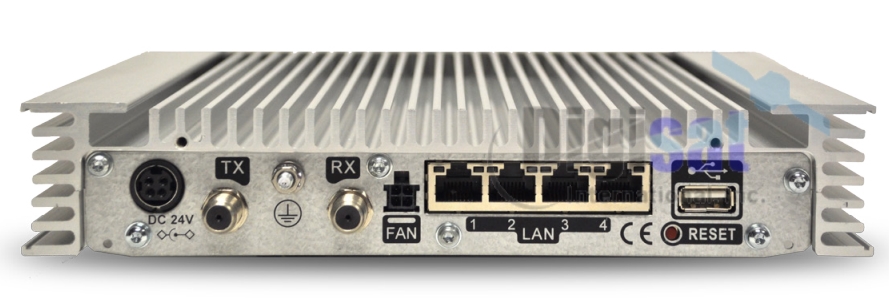

Enterprise Series MDM3100 IP

Failsafe technology and rock-solid design are key for rugged environment and heavy-duty operation. With its comprehensive, road-proven feature set of dust filters, extra-large heat sinks, and special surge protection, the two-way, high-performance MDM3100 IP Satellite Modem is ideal for corporate and specialized applications for vertical markets, such as Mobile Trunking, Rural Telephony, Second Mile, and SME.

The MDM3100 IP Satellite Modem has been designed to be fully compliant with the AFRIKASATSoln system specifications for ease of installation and use for continuous or unmanned operations. The modem is suitable for most broadband applications: from VoIP services to video conferencing and broadcast-quality Satellite News Gathering (SNG) services. The terminal facilitates 4 mbps download and 2 mbps upload and features IP forwarding, NAT, DHCP, GRE tunneling for VPN, Multicast and automatic login.

Its comprehensive feature set is rounded out by a unique LCD panel that facilitates intuitive control and monitoring of parameters without the need of a PC.

Features:

  • Cost optimized design.
  • Indoor Unit provides connectivity to Data, Voice and Video.
  • Outdoor Unit consists of a small size dish antenna with a Ku-Band receiver and transmitter.
  • Receiver data rates supported up to 4 Mbps.
  • Transmitter data rates supported up to 2 Mbps.* Lower cost versions for Internet access services will offer low return data rates compatible with Internet browsing and VoIP.
  • Adaptive Coding and Modulation (ACM) for most reliable operation even under the most severe weather conditions.
  • Forward link  waveform for maximum flexibility and efficiency.
  • Return link  waveform automatically adapts to user traffic characteristics to maximize capacity.
  • Advanced IP protocol enhancements for optimum performance over AFRIKASATSoln/conventional satellites.
  • Make use of TCP accelerator – NettGain product – to optimize system throughput.
  • Can be configured as always on system or manual login / logoff system.
  • Software VoIP support and optional hardware phone handset.

Technical Specifications:



Parameter Value(s)
Operating System Support Windows, Linux *
Status and Control User Interface Software Web based graphical user interface (GUI)
Status Monitor Functions Es/No, Rx Signal Strength, Rx Lock, Rx/Tx Bytes, Rx/Tx Bit Rates, Connection status
LCD Control Control and Monitoring all of parameter

PROTOCOL INTERFACE
Supported Protocols UDP/TCP/IP with advanced TCP acceleration, DHCP for client PCs, IP address assignment. IP Multicast. GRE Tunneling with TCP acceleration. Other VPN tunneling (no TCP acceleration).
Driver / Medium Access Control (MAC) Software On-board and hosted by embedded processor
Terminal / Gateway Message Processing IP based and satellite link layer based
Network Capability NAT, IP Forwarding (routing)
Voice Services H.323 using software application or optional hardware handset

HOST INTERFACE
Form Factor Standalone unit
Interfaces 10/100 Mbps Ethernet (RJ45)

AIR INTERFACE
Receive Data Rate Gateway managed up to 4 Mbps per terminal
Transmit Data Rate Gateway managed up to 2 Mbps per terminal
Satellite Access Always on or Manual login / logout per user; Automatically logon upon power up (configurable).
Receiver Waveform AFRIKASATSoln Proprietary “TOLL” waveform
Transmit Waveform AFRIKASATSoln Proprietary “STAR” waveform
Receive Turbo Code Rates & Modulation More than 14 combinations of Modulation and Codes. Samples are Rate 0.325 QPSK, 0.495 QPSK, 0.619 QPSK, 0.660 QPSK/8-PSK, 0.793 QPSK/8-PSK, and 0.835 QPSK/8-PSK
Transmit Turbo Code Rates & Modulation Rate 0.660 QPSK, 0.793 QPSK, and 0.816 8-PSK.

ODU INTERFACE
